Active Vibration Isolation System

Today's demanding applications require isolation in the low frequency range at 5 Hz and below.

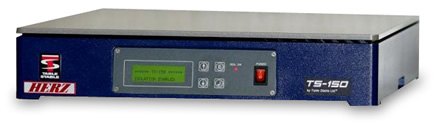

The TS is an advanced, fully-automatic vibration control system with turn-key installation.

Active isolation in six degrees of freedom, from 0.7 Hz to 100 Hz.
The TS features automatic load adjustment which maintains height and level with an instrument loaded on top.

The TS System offers great performance in a compact, lightweight package. It is an extremely high value-added vibration control system.

The 21st century is the age of nanotechnology. This is represented by semiconductor and information technology, genetic therapy and biological breakthroughs, micromachines that are assembled on the molecular or atomic level, and new materials synthesized by manipulating atoms. Nantotechnology is changing every industry from high level research to basic production. So these industries must develop environments that can effectively use nanotechnology. Measuring environments can be disturbed by vibrations, noise, magnetic fields, heat, humidity, and air movements. Of these, vibrations are the foremost cause of disturbance. Because air tables can not isolate low frequency vibrations, these vibrations may reduce the reliability of your results. So we are proud to off the TS series as the premier isolation system for the 21st century. Through continuous development, the TS will soon become the standard of the Nanotechnology Age.

The Easy to Use Solution...

The Compact Solution...

The TS is a low profile isolation system. It offers cutting edge performance in a compact package. Depending on your application, it can be used on the tabletop or can be integrated into your existing setup. It can support loads up to 230 kg.

The lightweight solution...

The TS system is lightweight, starting at only 18 kg.This makes it extremely easy to move and place whereever you need it.

The Easy to Use Solution...

The TS provides auto leveling upon the instrument being loaded or moved. So it will maintain stability even when the load is off center.

When an instrument's center of gravity is high, passive air isolation systems often struggle to achieve balance. However, the TS uses a coil spring so it can easily and quickly compensate for high center of gravity loads.

The TS offers an automatic lock down feature to protect the system while being moved or transported. This feature can be activated with the push of a button.

The front display shows real time vibration levels in X, Y, and Z. This provides feedback on vibration levels and diagnostic information on performance of the isolation. You can also monitor the accelerometer signals by connecting an oscilliscope to the BNC connector on the back of the system.

The TS is also available with a remote switch that activates/deactivates the active isolation. (Sold separately)

The High Performance Solution...

TS series actively isolates from 0.7Hz to 100Hz in all six degrees of freedom.

Example of Vibration Isolation performance of THE TS Series...

The image of the chook albumen lysozyme by the atomic force microscope.

Mounting Plates with Drilled and Tapped Holes Available

At left, you can see a TS mounting plate with an M6-25mmXY grid of drilled and tapped holes. The mounting plate consists of a paramagnetic stainless steel plate and an aluminum plate bonded together. These plates are available for all four models of TS. We can also drill custom hole configurations to the customers specifications. Certain tap sizes may not be available. Please ask if you are interested in a specific degree of surface precision.

Specifications
